12" 1024x768 Capacitive Touch Monitor Full Viewing Angle TouchScreen For Selfie Photo Booth

Name: 12quot 1024x768 Capacitive Touch Monitor Full Viewing Angle TouchScreen For Selfie Photo Booth
Brand: SHINHO
Price: 1 USD

12" 1024x768 Capacitive Touch Monitor Full Viewing Angle TouchScreen For Selfie Photo Booth Manufactures

Brand Name : SHINHO

Model Number : SL12

Certification : CE, FCC, RoHS

Place of Origin : Shenzhen, China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union,Paypal, MoneyGram

Product name : 12" touchscreen monitor

Resolution : 1024*768 4:3

Viewing angle : full viewing angle

Interfaces : HDMI VGA DVI USB

Brightness : 400 cd/m2

Wide voltage : 12-24V

Touch Type : Capacitive touchscreen

Application : For Selfie Photo Booth

Contact Now

12" 1024x768 Full Viewing Angle TouchScreen Monitor For Selfie Photo Booth

Features

12" TFT LCD panel
High resolution 1024*768 (4:3)
400cd/m2 brightness
Capacitive touchscreen
Full viewing angle
VGA HDMI DVI USB interface
High performance mainboard, 7x24 continuous operation
Support 12-24V wide voltage
Free brackets for open frame mounting

Specification

Model: SL12
LCD panel
Panel size	12"
Resolution	1024*768
Aspect ratio	4:3
Support Color	16.7M colors
Brightness (cd/m²)	400 cd/m²
Contrast ratio	1000:1
View angle	80°/80°/80°/80° (R/L/U/D) Full viewing angle
Touch panel
Touchscreen Type	Project Capacitive Touch (10 points )
Surface Hardness	7H
Luminousness	90%
Touch Interface	USB (RS232 optional)
Touch response time	2ms
Working Life	>50 million times
Touch options	(5 wires restive touch, IR touch optional)

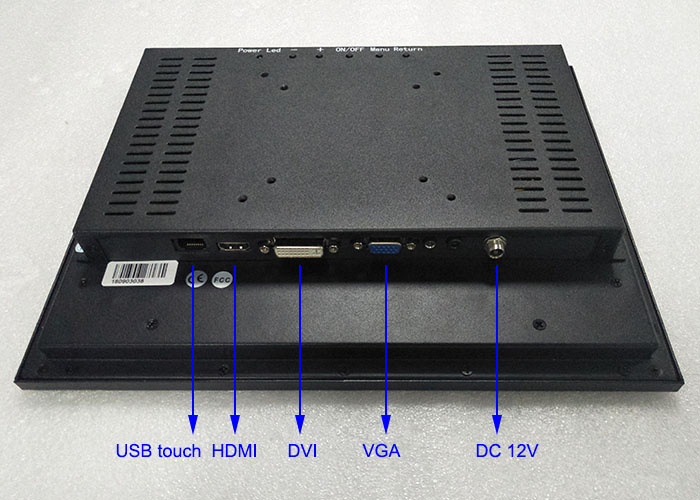

Signal Ports
VGA	1x VGA
DVI	1x DVI
HDMI	1x HDMI
Audio in/out	optional
OSD
OSD control	Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.
Support languages	English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
Support OS	Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power Supply	AC 100 - 240V, 50-60Hz
Working voltage	DC 12-24V
Power consumption	≤35W
Enclosure
Material	High strength cold rolled steel
Color	Black, Silver
VESA mounting	75x75mm/100x100mm
IP grade	Front panel IP65 waterproof
Operating Environment
Temperature Range	operating: -10 to 60°C, storage: -20 to 80°C
Relative humidity	operating: 10% to 80%, storage: 5% to 90%
Packing Details
Net weight	3.5kg
Gross weight	4kg
Product Dimension	32.58x26.6x4.48cm
Packing size	43x38x18cm
Accessories	Power adapter, VGA cable, USB touch cable, embedded screws, open frame brackets, user manual, warranty card
Other
Mounting	open frame brackets, screws
	wall mounting brackets (optional)
	desk stand holder (optional)
Warranty	1 year warranty
Certificates	CE, FCC, RoHS

12" Touchscreen Monitor Application

Selfie photo booth
Automatic Self-Service Vending Machines
Reverse vending machine
Automatic payment kiosk
Ticketing systems
Parcel locker
Automatic cash machines
CNC Control Panel
Hotel check-in kiosk
