USB Powered Open Frame Touch Screen Monitor TFT 10.4 Inch Support Video Signal

Product Categories
Shenzhen Shinho Electronic Technology Co., Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

USB Powered Open Frame Touch Screen Monitor TFT 10.4 Inch Support Video Signal

Brand Name : Sihovision

Model Number : SL104

Certification : CE,FCC, RoHS

Place of Origin : Shenzhen,China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, Paypal, MoneyGram

Product name : 10.4inch USB Powered Touchscreen Monitor

Products status : Stock

Resolution : 1024*768

Screen size : 10.4"

Interface : USB

Brightness : 400+ nits

IP Grade : Front panel IP65 waterproof

Viewing angle : 85°/85°/85°/85° (R/L/U/D)

Touchscreen Type : Project Capacitive Touch (10 points )

Material : Aluminum Alloy

Power supply : DC 12V(AC 100-240V 50/60Hz)

Widescreen : Yes

Panel type : TFT

Color : Black

Application : embedded/desktop/wall mount

Warranty : 1 Years

Contact Now

10.4inch USB Powered Touchscreen Monitor, support video signal, power and touch over a single USB3.0 cable

Features:

1. Front bezel aluminum alloy brushed metal craft, seamless design, front IP65 waterproof and dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response.
4. High performance mainboard, 7x24 continuous operation.
5. Support wall mounting,embedded mounting,desk stand mouting etc.
6. Support video signal, power and touch over a single USB3.0 cable.

Specification

10.4" USB Powered Touchscreen Monitor (Model:SL104)
LCD panel
Panel size 10.4"
Resolution 1024*768
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 400+
Contrast ratio 800:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points )
Surface Hardness 7H
Luminousness 90%
Touch Interface USB (RS232 optional)
Touch response time 2ms
Working Life >50 million times
Touch options (5 wires restive touch, IR touch optional)
Signal Ports
USB 1×USB (support video signal, power, and touch over a single USB3.0 cable)
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
Support OS Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power Supply AC 100 - 240V, 50-60Hz
Working voltage DC 12V
Power consumption ≤15W
Enclosure
Material aluminium alloy bezel+High strength cold rolled steel back case
Color Black, Silver
VESA mounting 100x100mm
IP grade Front panel IP65 waterproof
Operating Environment
Temperature Range operating: -10 to 60°C, storage: -20 to 80°C
Relative humidity operating: 10% to 80%, storage: 5% to 90%
Packing Details
Net weight 1kg
Gross weight 1.5kg
Product Dimension 26.6*21.4*2.75cm
Packing size 33*30*10cm
Accessories USB3.0 cable
Other
Mounting embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty 1 year warranty
Certificates CE, FCC, RoHS

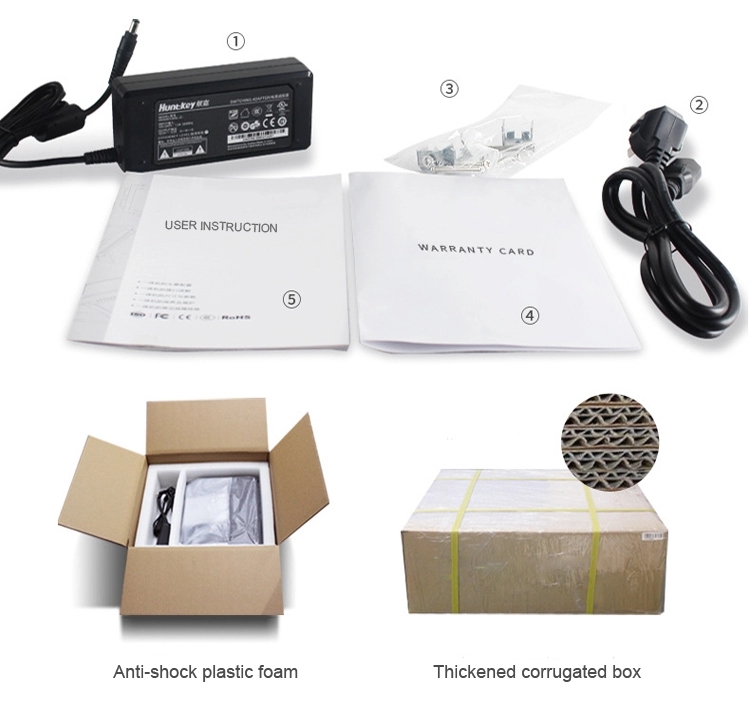

Package

USB Powered Open Frame Touch Screen Monitor TFT 10.4 Inch Support Video Signal

Certifications

USB Powered Open Frame Touch Screen Monitor TFT 10.4 Inch Support Video Signal

OEM & ODM

USB Powered Open Frame Touch Screen Monitor TFT 10.4 Inch Support Video Signal

About Shinho Electronic
USB Powered Open Frame Touch Screen Monitor TFT 10.4 Inch Support Video Signal

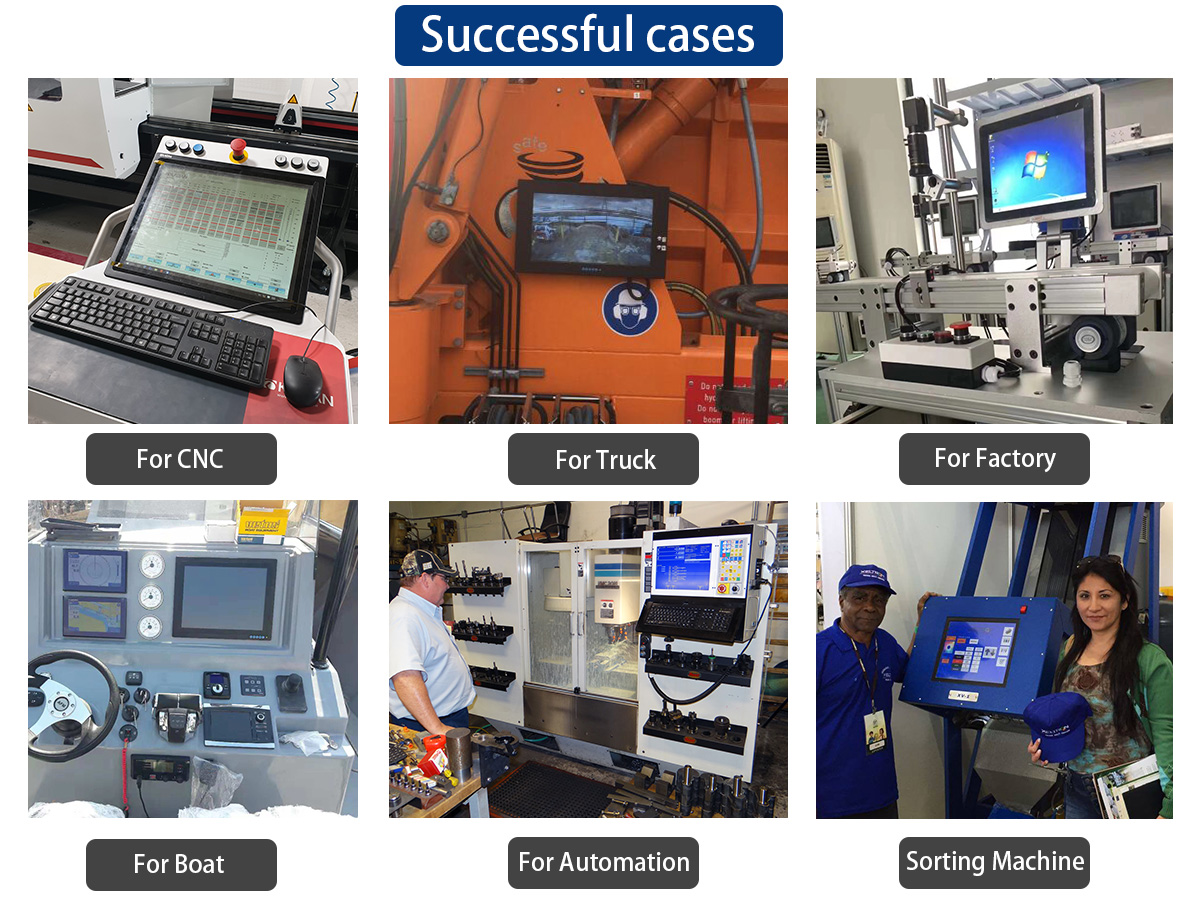

Application

USB Powered Open Frame Touch Screen Monitor TFT 10.4 Inch Support Video Signal

Application
Smart City
Intelligent Education
Public Transportation
Commercial Terminals
Industrial automation area
Product Stamping and Packaging
