70°C High Temperature Support Capacitive Touch Monitor With Vandal Proof And Waterproof
Features
1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
2. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 3mm AR glass, Vandalproof, Anti UV, Anti glare, Antioxidation.

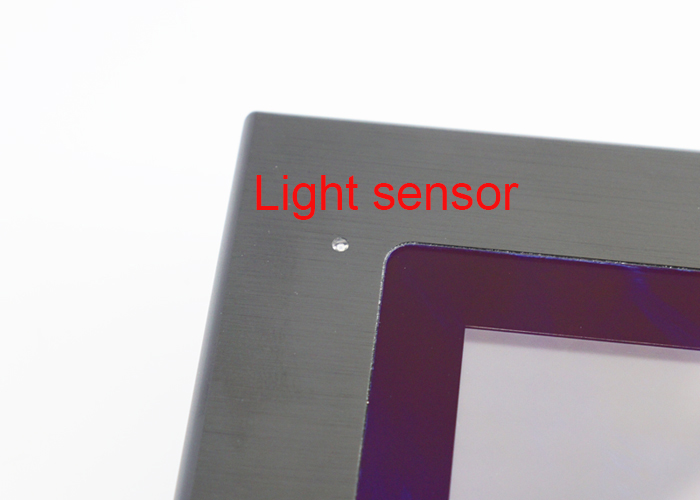

3. Brightness: 1000cd/m2, sunlight readable, with light sensor for auto dimming. (It can be turned off in Menu if you don't need to use it).
4. High performance mainboard, 7x24 continuous operation.
5. VGA+HDMI+ USB for touch.
6. Wide Operating Temp support: operating: -20 to 70°C,storage: -30 to 80°C.
7. EETI waterproof touch solution, when with drop water on the screen, it also can touch very sensitive.
8. Ideal for embedded in outdoor cabinet, kiosk, ship.
Specification
| Model:SL15 |
| LCD panel |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Brightness control | Light sensor |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/70°/70° (R/L/U/D) |
| Touch panel |
| Touch solution | EETI waterproof touch solution |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires restive touch, IR touch optional) |
| Signal Ports |
| VGA | 1x VGA |
| HDMI | 1x HDMI |
| DVI | optional |
| Audio in/out | optional |
| OSD |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply |
| External Power Supply | AC 100 - 240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure |
| Material | Aluminum alloy bezel+High strength cold rolled steel back case |
| Color | Black, Silver |
| VESA mounting | 75x75mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment |
| Temperature Range | operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | operating: 10% to 80%, storage: 5% to 90% |
| Packing Details |
| Net weight | 4.5kg |
| Gross weight | 6kg |
| Product Dimension | 40*32*5.98cm |
| Packing size | 47*44*18cm |
| Accessories | Power adapter, HDMI cable, USB touch cable, embedded screws |
| Other |
| Mounting | embedded mounting screws |
| wall mounting brackets (optional) |
| desk stand holder (optional) |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |

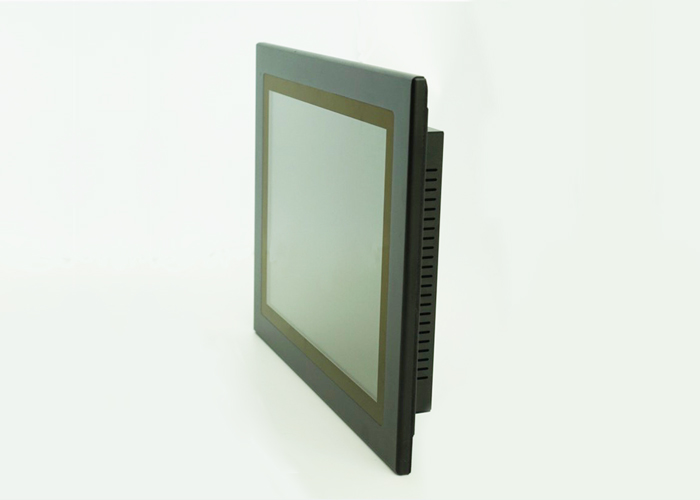

Pictures
Drawing
Application
self service postal locker
automatic pay station machine
gas/petrol station
automatic vending machines
smart Intercom System
Residential Buildings
parking management system
Packaging testing equipment
