7 Inch High Brightness Monitor Outdoor LCD Display DC 12V Molex Power Interface

Name: 7 Inch High Brightness Monitor Outdoor LCD Display DC 12V Molex Power Interface
Brand: SHINHO
Price: 1 USD

7 Inch High Brightness Monitor Outdoor LCD Display DC 12V Molex Power Interface Manufactures

Brand Name : SHINHO

Model Number : SL07

Certification : CE, FCC, RoHS

Place of Origin : Shenzhen,China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union,Paypal, MoneyGram

Product name : 7 inch Outdoor LCD Display

Brightness : 1500 Nits

Brightness asjustment : With Light sensor, auto dimming

Waterproof rate : Front IP65 waterproof

Signal Port : VGA HDMI

Power supply : with DC 12V Molex Power Interface

Contact Now

7 Inch 1500 Nits Outdoor LCD Display with DC 12V Molex Power Interface

Features

This 7" LCD Display adopts industrial grade LCD panel which is rugged and had a wide working temperature range -20°C~70°C. It's high brightness 1500nits sunlight readble. With a light sensor in front, it can adjust brightness automatically, won't hurt eyes at night. It's ideal for outdoor application. The front bezel is only 2.5mm, which is perfect for panel mount. What's more, it has VGA HDMI signal interface and also DC12V molex power interface.

Specifications

Model:SL07
LCD panel
Panel size	7"
Resolution	1024*600
Aspect ratio	16:9
Support Color	16.7M colors
Brightness (cd/m²)	1500 nits, outdoor sunlight readable
Brightness control	With light sensor in front, to adjust brightness automatically
Contrast ratio	800:1
View angle	75°/75°/70°/75° (R/L/U/D)
Singal Ports
VGA	1×VGA
HDMI	1×HDMI
DVI	optional
Audio in/out	optional
OSD
OSD control	Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages	English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS	Windows XP, Windwows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power Supply	AC 100 - 240V
Working voltage	DC 12V, molex power interface
Power consumption	≤10W
Enclosure
Appearance	Flat panel
Material	aluminium alloy bezel+High strength cold rolled steel back case
Color	Black
VESA mounting	75×75mm
IP Grade	front panel IP65 waterproof
Operating Environment
Temperature Range	operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity	operating: 10% to 90% , storage :5% to 90%
Packing Details
Net weight	1.85kg
Gross weight	2.6kg
Product Dimension	19.41x12.96x3.05 cm
Packing size	37x28x10 cm
Accessories	HDMI /VGA cable, molex power interface
Other
Mounting	Embedded screws
	wall mounting brackets (optional)
	desk stand holder (optional)
Warranty	1 year warranty
Certificates	CE, FCC, RoHS

Applications

Industrial equipment

Golf ball dispensing machine

Entry/exit terminal

Electric Car DC charger

Access control

Smart parking systems

parking and access systems

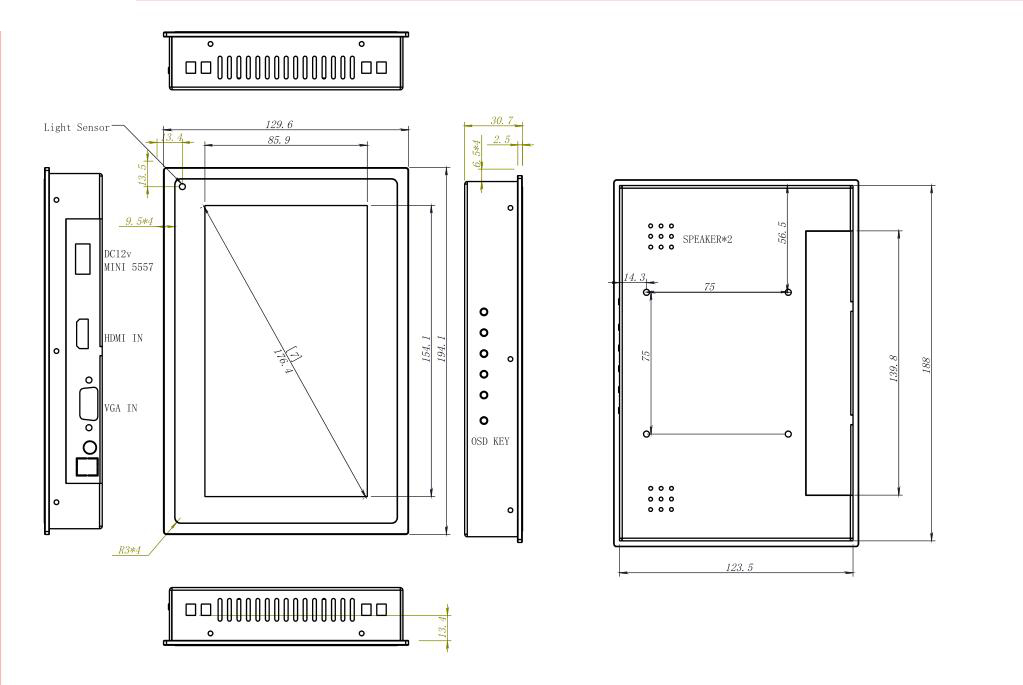

Drawing

7 Inch High Brightness Monitor Outdoor LCD Display DC 12V Molex Power Interface
