10.4" Wide Operating Temperature Full IP67 Waterproof 1000 Nits Brightness

Name: 104quot Wide Operating Temperature Full IP67 Waterproof 1000 Nits Brightness
Brand: SHINHO
Price: 1 USD

10.4" Wide Operating Temperature Full IP67 Waterproof 1000 Nits Brightness Manufactures

Brand Name : SHINHO

Model Number : SL104W

Certification : CE, FCC, ROHS

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : negotiable

Payment Terms : T/T, Western Union, Paypal

Luminousness : 85%

Support Color : 16.7M colors

Working voltage : DC 12V

Panel size : 10.4"

Resolution : 800*600

Aspect ratio : 4:3

Brightness : 1000 nits，sunlight readable

Touchscreen Type : 4 wire resistive touch

Material : aluminium alloy front bezel +High strength cold rolled steel back case

IP grade : IP67

Contact Now

10.4" Widescreen full IP67 waterproof 1000 nits Monitor with resistive touch screen

Features

1. Robust and durable all-metal enclosure, sealing design, full IP67 waterproof
2. Industrial LCD panel, high brightness 500 nits.
3. Adopt high precision industrial 4 wire resistive touch screen
4. High performance mainboard, 7x24 continuous operation.

Specification

Model:SL104W
LCD panel
Panel size	10.4"
Resolution	*800600**
Aspect ratio	4:3
Support Color	16.7M colors
Brightness (cd/m²)	1000 nits,sunlight readable
Contrast ratio	1000:1
View angle	80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type	4 wire resistive touch
Touch Interface	USB (RS232 optional)
Touch response time	<5ms
Luminousness	85%
Surface Hardness	3H
Working Life	>35 million times
Touch options	( PCAP touch optional)
Singal Ports
VGA	1×VGA
HDMI	optional
DVI	optional
AV	optional
Audio in/out	optional
OSD
OSD control	Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages	English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS	Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect.
Power Supply
External Power Supply	AC 100 - 240V
Working voltage	DC 12V
Power consumption	25 W
Enclosure
Material	aluminium alloy front bezel +High strength cold rolled steel back case
Color	Black, white, Silver , color can be customized
VESA mounting	75×75/100×100 mm
IP-grade	IP67
Operating Environment
Temperature Range	operating: -10°C to 60°C, storage :-20°C to 70°C
Relative humidity	operating: 10% to 90% , storage :5% to 90%
Packing Details
Net weight	2.5kg
Gross weight	3kg
Product Dimension	27×21×3.8cm
Packing size	36×30×15cm

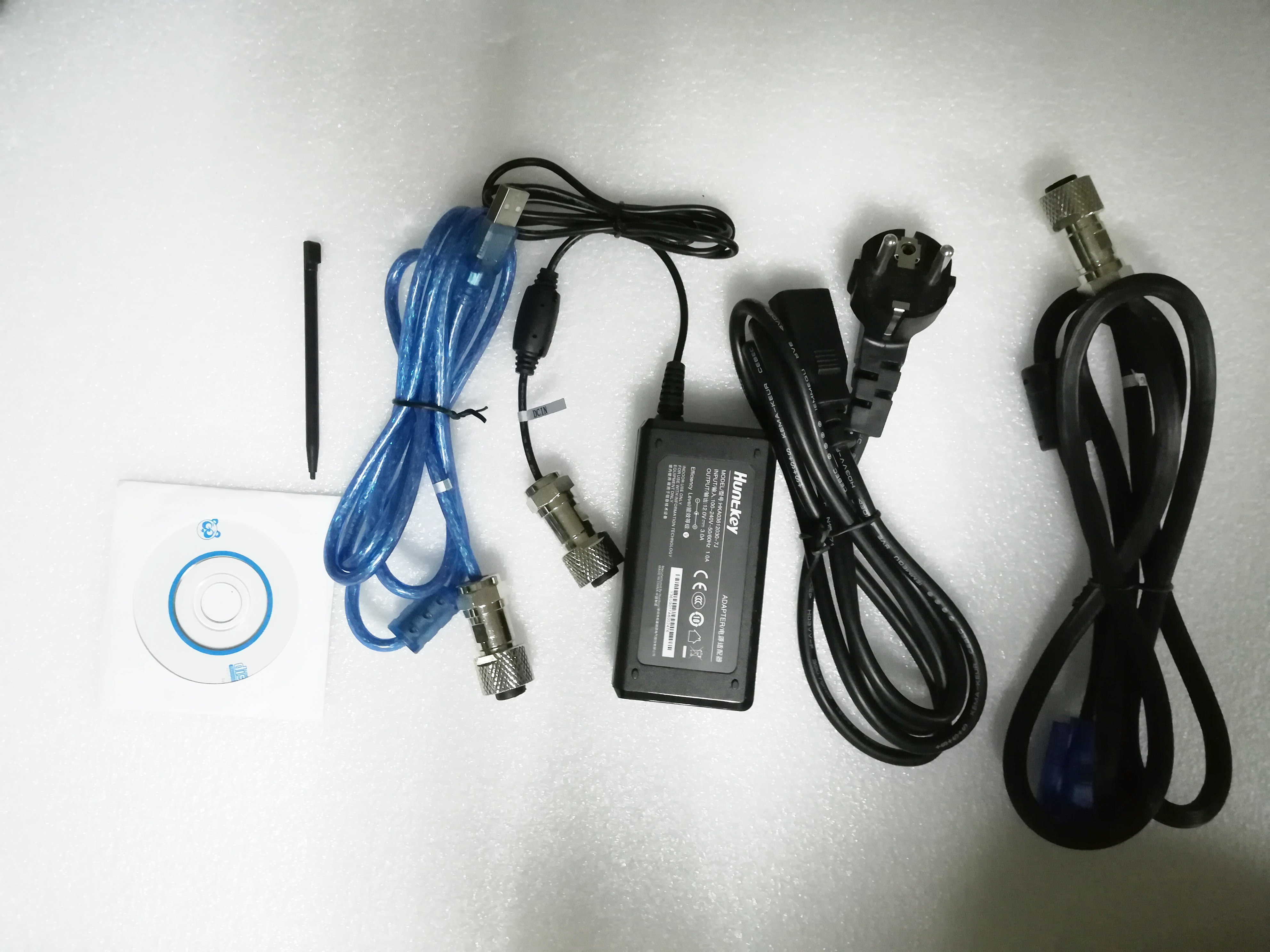

Accessories	Power adapter, VGA/USB cable
Other
Mounting (options)	1) provide wall brackets for wall-mounting, VESA 75×75 mm
Mounting (options)	2) provide stable metal holder to support the monitor
Warranty	1 year warranty

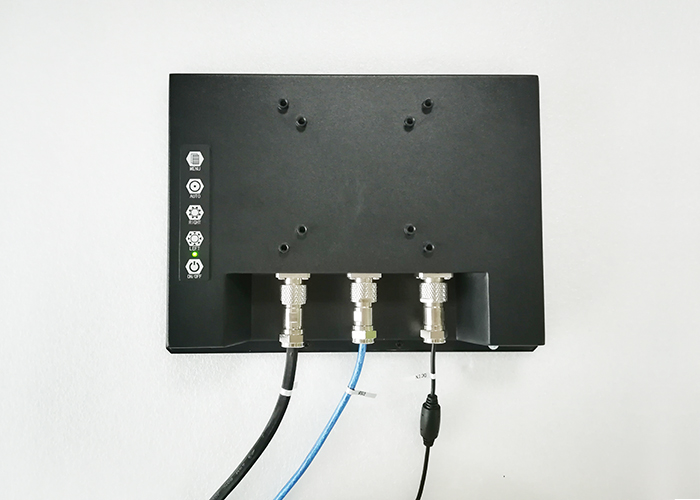

Pictures

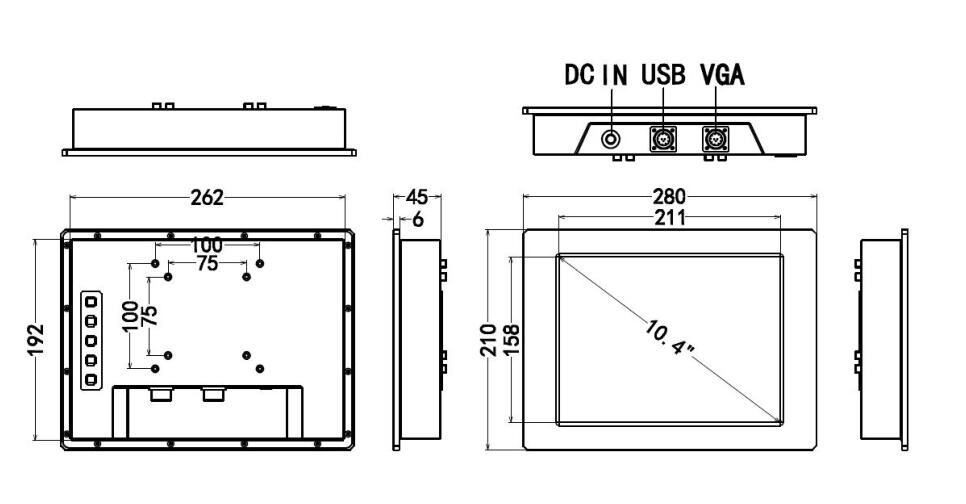

Drawing

10.4" Wide Operating Temperature Full IP67 Waterproof 1000 Nits Brightness

Application

mechanical equipment

Super Market

Airport

hospital

Shopping Mall

beverage vending machine

CNC control

ATM

face recognition system
